Rubber core store glues big quantity, small friction resistance when switch pressure sealing ability.
Using hemispherical head, no stress concentration phenomenon when under pressure, casing stress evenly, easy to tear open outfit.
Long-life sealing element provides positive seal after hundreds of tests to full working pressure.
Strong, simple construction- only five major parts, which simplifies maintenance.
Sealing element design provides long stripping life.

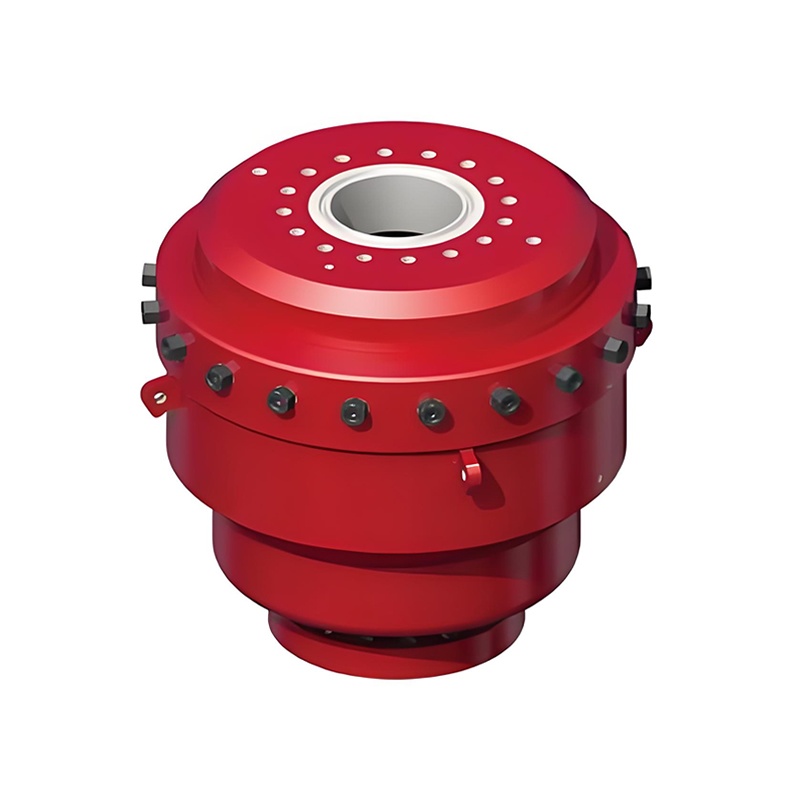

Annular BOP
Annular BOP consists of body, upper housing, sealing element, dust-proof ring, and piston. It provides a rugged, reliable preventer and ease of service and is widely used Offshore (subsea and surface) and onshore.
Annular BOP is compact, seal any size kellys, drill pipe, tool joints, drill collars, casing or wireline. Sphericals also provide positive pressure control for stripping drill pipes into and out of the hole.
Technical Parameters:
| Model |
Main bore mm(in) |
Working pressure MPa (psi) |
Operating Pressure
MPa |
Connection type |
Dimension mm
mm |
weight
kg |
||
| Top | Bottom | OD | Height | |||||
| FH18-21 |
179
(7-1/16) |
21(3000) | 8.4～10.5 | studded | fanged | 737 | 743 | 1350 |
| FH18-35 | 35(5000) | 737 | 790 | 1572 | ||||
| FH18-70/105 | 70(10000) | 1092 | 1136 | 5070 | ||||
| FH23-21 |
228
(9) |
21(3000) | 900 | 830 | 2104 | |||
| FH23-35 | 35(5000) | 998 | 1200 | 3540 | ||||
| FH28-21 |
279
(11) |
21(3000) | 1013 | 838 | 2574 | |||
| FH28-35 | 35(5000) | 1138 | 1081 | 4410 | ||||
| FH28-35/70 | 35(5000) | 1138 | 1096 | 4451 | ||||
| FH28-70/105 | 70(10000) | 1448 | 1420 | 10800 | ||||
| FH35-35 |
346
(13-5/8) |
35(5000) | 1270 | 1160 | 6400 | |||
| FH35-35/70 | 35(5000) | 1270 | 1227 | 6843 | ||||
| FH35-70/105 | 70(10000) | 1640 | 1664 | 15110 | ||||
| FH43-35 |
425
(16-3/4) |
35(5000) | 1524 | 1320 | 10834 | |||
| FH48-70 |
476
(18-3/4) |
70(10000) | 1937 | 1882 | 27161 | |||
