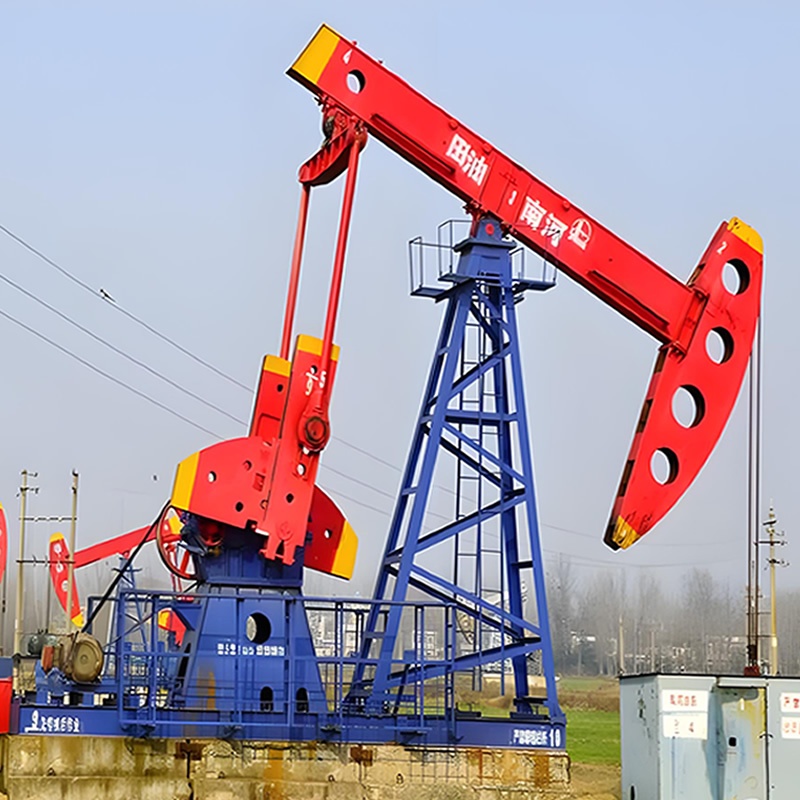

Designed and manufactured according to API SPEC 11E.
Able to provide reliable, cost-effective performance.
Alternative designs of structure for diversified continent.
Lower torque and horsepower requirements to reduce lifting costs in a range of applications.
| NO. | Model |
Load Rating (lbs) |
Stroke Length (in) |
Stroke Frequency (1/min) |
| 1 | C-40D-76-48 | 7600 | 48;37;26 | 6;9;12 |
| 2 | C-57D-76-54 | 7600 | 54;41;28 | 6;9;12 |
| 3 | C-80D-133-54 | 13300 | 54;43;31 | 6;9;12 |
| 4 | C-80D-119-64 | 11900 | 64;52;40 | 6;8;10 |
| 5 | C-114D-119-86 | 11900 | 86;76;59 | 6;8;10 |
| 6 | C-114D-143-64 | 14300 | 64;52;40 | 6;8;10 |
| 7 | C-114D-143-74 | 14300 | 74;62;50 | 6;8;10 |
| 8 | C-160D-173-86 | 17300 | 86;74;61 | 6;8;10 |
| 9 | C-160D-200-76 | 20000 | 76;62;51 | 6;8;10 |
| 10 | C-228D-213-120 | 21300 | 120;102;85 | 5;7;9 |
| 11 | C-228D-246-86 | 24600 | 86;74;61 | 5;7;9 |
| 12 | C-228D-173-100 | 17300 | 100;86;71 | 5;7;9 |
| 13 | C-320D-305-120 | 30500 | 120;102;85 | 5;7;9 |
| 14 | C-320D-256-120 | 25600 | 120;100;86 | 5;7;9 |
| 15 | C-456D-305-120 | 30500 | 120;102;85 | 5;7;9 |
| 16 | C-456D-305-144 | 30500 | 144;124;106 | 4;6;8 |
| 17 | C-912D-427-192 | 42700 | 192;164;136;110 | 4;6;8 |
| 18 | C-1280D-365-192 | 36500 | 192;164;136;110 | 4;5;6 |
| 19 | C-1280D-427-192 | 42700 | 192;164;136;110 | 4;5;6 |
| 20 | C-1280D-427-216 | 42700 | 216;192;168;144 | 4;5;6 |
| 21 | C-1824D-427-192 | 42700 | 192;164;136;110 | 4;5;6 |
| 22 | C-1824D-427-216 | 42700 | 216;192;168;145 | 4;5;6 |
