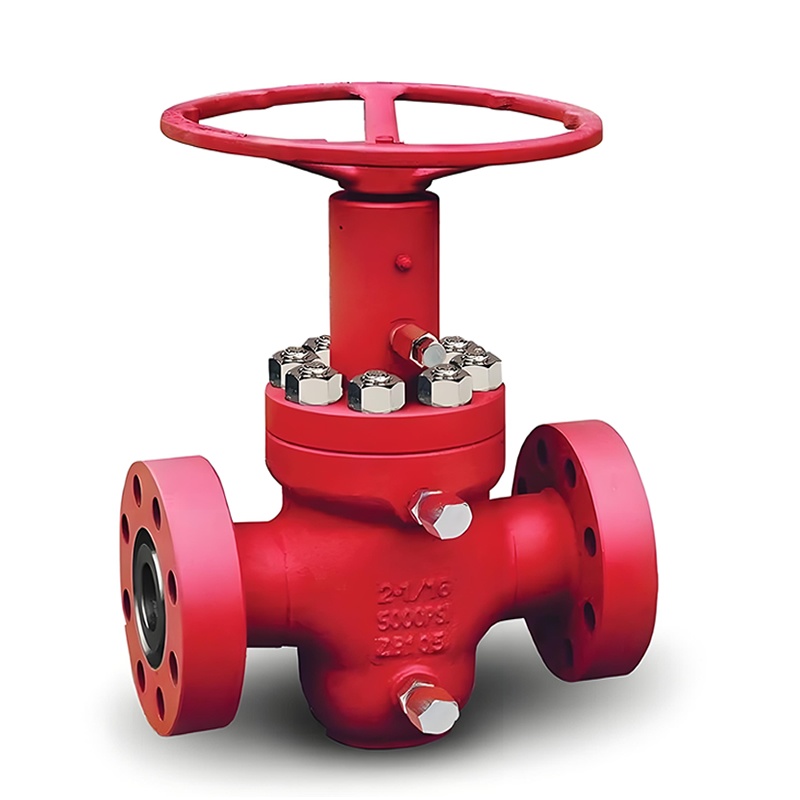

FC Gate Valve

Product Specification

• Sizes: 1-13/16″ to 7-1/16″ Pressure Ranges: 2,000 psi to 15,000 psi
• Product Specification Level: PSL-1,PSL-2,PSL-3,PSL-3G
• Material Classes: AA,BB,CC,DD,EE,FF,HH
• Temperature Rating: K to U (-60°C to 121°C)

Product Description

FC gate valve, often found in oilfield and flowline applications, is a type of slab gate valve known for its reliability and interchangeability. These valves are designed for demanding environments and feature a non-rising stem, bidirectional sealing, and a one-piece gate to prevent sediment buildup and pressure locks. They are commonly used in drilling manifolds, X-mas trees, and other severe service applications.

FC gate valve which provided by Boru feature a non-rising stem with a slab gate, floating seat ring body bushing design to provide safe dependable service. It is available in flanged ends in standard bore sizes from 1-13/16″  to 7-1/16″ in working pressures of 2,000 psi and 15,000 psi.

The Boru model FC gate valve is a field-proven valve which provides reliability and interchangeability. It has bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service.

Boru can provide a wide range of body and trim materials to meet various operating conditions. The FC gate valve can be easily equipped with Hydraulic Actuators for Manifold or Subsea service.

Full-Bore Thru-Conduit Design

• Maximizes valve service life.
• Eliminates the collection of destructive particles.

Floating Slab Gate and Seats

• Produces a positive pressure energized seal.
• Body pressure equalizes across the seat ring/body bushing, eliminating body erosion in the seat pockets.
• One piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops.

Metal-to-Metal Seals

• Body/bonnet interface, gate/seat ring/body bushing interfaces, body/body bushing interface.
• Gate and seat are overlaid with Tungsten Carbide.
• Valve bodies and bonnets are forged steel.

In-line Repairability

• Seat rings, body bushings, gate, and stem are easily replaced in the field.
• Stem packing can be replaced under pressure with our back-seat capability.
• Piston o-rings and diaphragms are also easily replaced in the field.

Metal-to-Metal Backseat

• Allows for body pressure containment in the case of stem packing leak.

Long Life, Low Maintenance

• Simple routine maintenance program limits repairs, eases operation, protects again.

Our goal is to deliver cost-effective solutions that ensures operational reliability, minimizes downtime, and reduces costly repairs while improving performance and efficiency.

When you need the  x-mas tree assembly ,Contact us for a quote or more information.
