FL & FLS  Gate Valves For 2,000 psi ~ 20,000 psi Application.

Main Features

• Full flow size through diameter
• Tungsten carbide coated metal seals
• Quick grease and drain
• On-line disassembly and repair
• Replacement of stem packing under pressure
• Low torque and easy operation
• Valve position indicator mechanism can be added

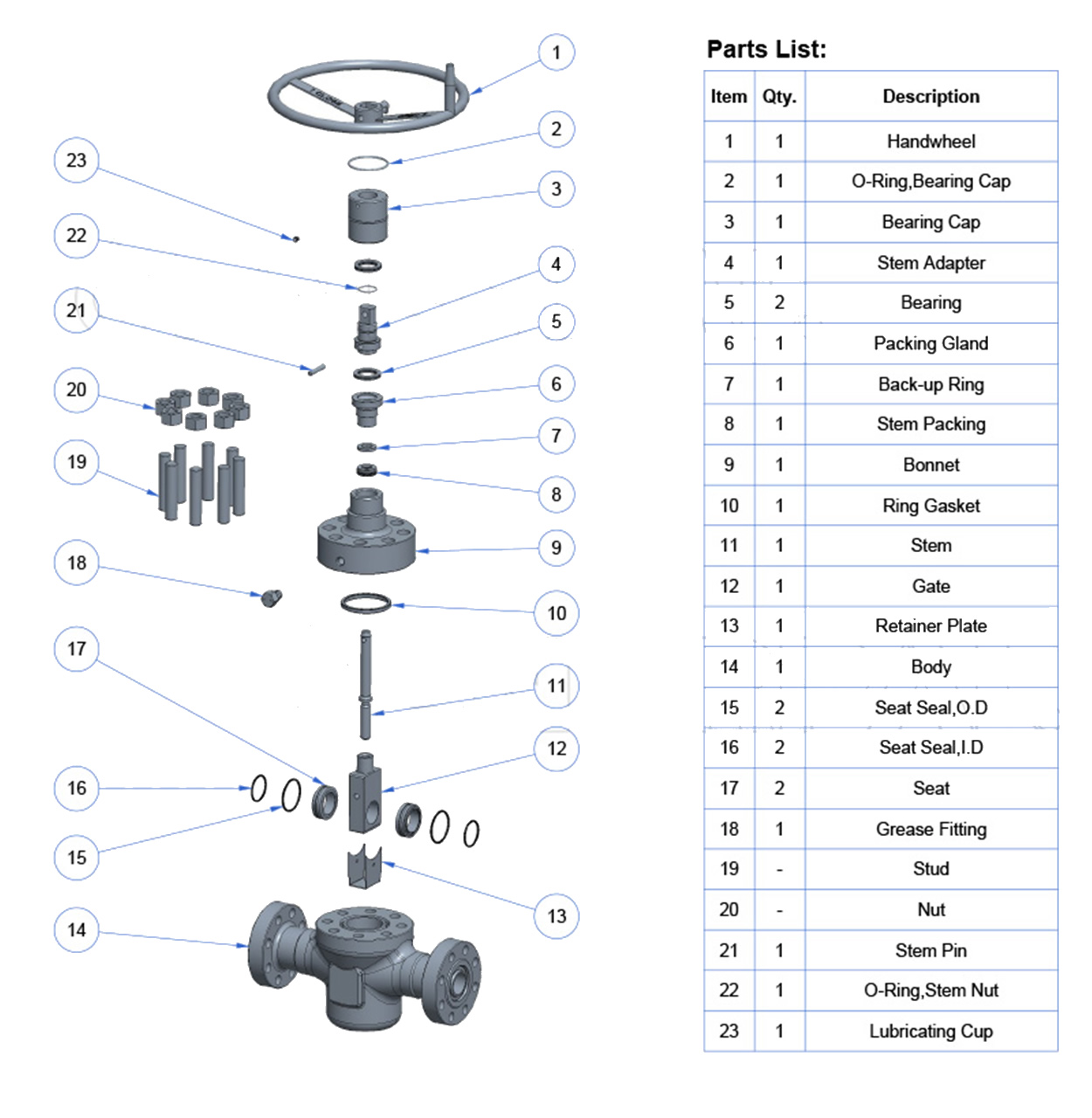

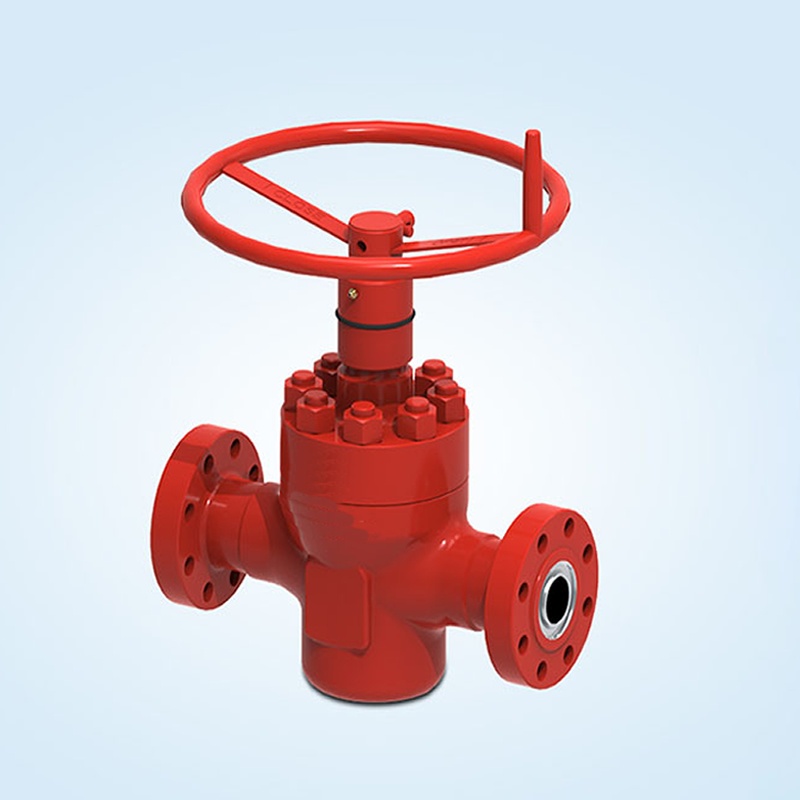

Cameron Style FL & FLS Gate Valve

Product Specification

• Sizes: 1-13/16″ to 7-1/16″
• Pressure Ranges: 2,000 psi to 20,000 psi
• Product Specification Level: PSL-1,PSL-2,PSL-3,PSL-3G
• Material Classes: AA,BB,CC,DD,EE,FF,HH,ZZ
• Temperature Rating: K to U (-60°C to 121°C)

Product Description

FL & FLS gate valves which provided by Boru feature a non-rising stem with a slab gate, floating seat design to provide safe dependable service. A position indicator mechanism can also be added to show the position status of the valve.It is available in flanged ends in standard bore sizes from 1-13/16″ to 7-1/16″ in working pressures of 2,000 psi to 20,000 psi. API 5B threaded end connection ports such as LP, EUE, NUE, etc. are also applicable.

The Boru model FL & FLS Gate Valve is a field-proven valve which provides reliability and interchangeability. FL & FLS gate valves can be suitable for use in well head and X-max trees, choke manifolds Kill manifolds, choke and kill lines, wellhead fracturing valves, etc. due to their unique structure. In x-mas trees, it can be used as lower master valve, upper master valve, wing valve and swab valve.

Enerpal can provide a wide range of body and trim materials to meet various operating conditions. The FL & FLS gate valves can be operated not only manually, but also hydraulically, pneumatically and electrically, depending on the actual requirements.

Features of FL & FLS Gate Valves

Full-Bore Thru-Conduit Design

• Maximizes valve service life.
• Eliminates the collection of destructive particles.
• Backpressure valves(BPV) can be delivered and picked up.

Floating Slab Gate and Seats

• Produces a positive pressure energized seal.
• Body pressure equalizes across the seat, eliminating body erosion in the seat pockets.
• One piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops.

Metal-to-Metal Seals

• Body/bonnet interface, gate/seat interfaces, body/Seat interface.
• Gate and seat are overlaid with Tungsten Carbide(TC).
• Valve bodies and bonnets are forged steel.

In-line Repairability

• Seat, gate and stem are easily replaced in the field.

Metal-to-Metal Backseat

• Replacing stem packing under pressure.

Bleeder function

• Fluid and pressure trapped in the valve cavity can be relieved.

Long Life, Low Maintenance

• Simple routine maintenance program limits repairs, eases operation, protects again.
